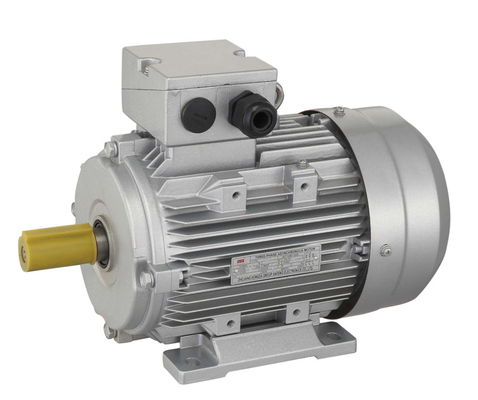

Y2160M6 totally enclosed 380/660V 10Hp 7.5Kw 1450Rpm 3 phase electric motor

Y2 Series Three Phase Induction Motor:

Brief:

Y2 series three-phase ac motor is specially designed for European market, whose terminal box is located on the top. This motor has a very compact structure and attractive appearance. The sizes and mounting dimensions are produced according to the IEC standard. The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.

Detailed information:

1) Frame sizes: 63-355

2) Rated power: 11 kW

3) Rated voltage: 220 - 660V

4) Frequency: 50Hz, 60Hz

5) Protection class: IP54

6) Insulation class: E, B, F

7) Materials: cast iron.  aluminum (FRAME 63-160)

8) EFF: EFF2

9) Poles: 2.4.6.8

10) Cooling method: IC411

11) Mounting types: IMB3  ,IMB5,IMB35,IMB34,IMB14

12) Color: blue

13) Operating mode: S1

14) Ambient temperature: -35 ^oC< &theta < 40^oC

15) The altitude should be lower than 1,000m above the sea level

16) Relative humidity: not higher than 90%

17) Special motors can be designed according to customers' requirements

18) Export markets: Europe, North America, the Middle East, Africa, Southeast Asia, East Asia, South America
