Inicio /Productos/motor eléctrico de CC/drip-proof 380 dc motor with gear on shaft /18v dc motor/12v dc motor rs-380

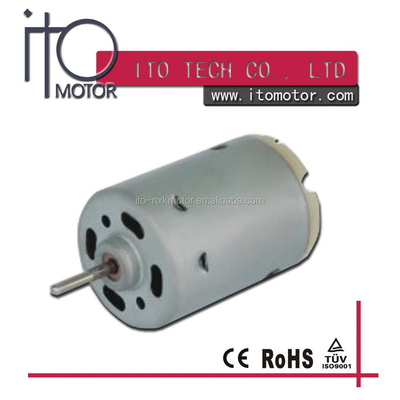

drip-proof 380 dc motor with gear on shaft /18v dc motor/12v dc motor rs-380

1000 Pieces
MOQ
drip-proof 380 dc motor with gear on shaft /18v dc motor/12v dc motor rs-380
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: IRS-385PM/380PM
Voltage(V): 1.5-24V
Output Power: 5-80W
Usage: BOAT, Car, Electric Bicycle, FAN, Home Appliance, Industrial equipment
Type: Micro Motor
Torque: 10-200g.cm, High Torque
Construction: Permanent Magnet, Permanent Magnet
Commutation: Brush
Protect Feature: Drip-proof
Speed(RPM): 2000-20000RPM
Continuous Current(A): 0.3-5A
Efficiency: IE 1
Certificación: ce, RoHS
OD of Micro DC motor: 27.7mm
Power: DC
Brush: Carbon Brush
Speed: Constant Speed
Voltage: Adjustable
Shaft: 2.3mm or D-shape
Información básica
Certificación: ce, RoHS
Model Number: IRS-385PM/380PM
Pago y Envío Términos
Packaging Details: Bubble chamber/ blister/ carton/ wooden box
Supply Ability: 100000 Piece/Pieces per Month
Descripción de producto

Metal /Carbon brush high torque 3v-36v dc motor IRS-385/380PM ,12v dc electric motor

MODELVOLTAGENO- LOADAT MAXIMUM EFFICIENCYSTALL TORQUE
SPEEDCURRENTSPEEDCURRENTTORQUEOUTPUTEFF
OPERATING RANGENOMINALrpmArpmAg·cmW%g.cm
IRS-380S-1236012.0-36.024.0v 69000.06 56700.25 63.0 3.66 60.8 352
IRS-380S-32703.0-12.06.0v 100000.35 83001.40 68.0 5.80 69.0 400
IRS-380S-45353.0-12.02.4v 74700.73 61442.59 53.2 3.35 53.9 300
IRS-380S-65182.4-6.04.5v 283002.24 239208.70 100.0 24.30 62.1 840
IRS-385S-18852.4-36.012.0v96000.17 76600.67 58.2 4.60 56.8 288
IRS-385S-20732.4-36.012.0v 106000.19 86000.81 64.0 5.60 57.7 339
IRS-385S-24582.4-36.024.0v 219000.28 178571.44 120.0 22.00 63.7 650
12.0v 135000.25 110001.30 100.0 11.30 72.4 540
IRC-385-1511612-36.036V190000.12 140000.78 105.0 20.00 70.0 670

Customized Versions of High quality IRS-385/380PM dc micro vibration motor

1. Encoder possible
2. Internal capacitors or varister
3. Voltage and speed adjustment by winding change
4. Modification of shaft length
5. Modification of shaft configuration (flat, hole, knurling, rear shaft etc.)
6. Assembly of gears, vibrators, pulley, etc.
7. Ball bearing and oil bearing available.

Other customization of 27.7mm IRS-385/380PM Micro DC MOTOR

1)Metal end cover

2)3 slots or 5 slots rotors, rotor can be oblique.

3)Motor rotation: CW or CCW

4)Motor Flux ring thinkness can be made by special.

5)Motor Connector can be available.

Dimension of High quality IRS-385/380PM dc micro vibration motor

Other Views of High quality IRS-385/380PM dc micro vibration motor

Packaging & Shipping

Production line of Micro DC motor

Certificate of Micro DC motor

Welcome to customize suitable motor from ITO motor.
