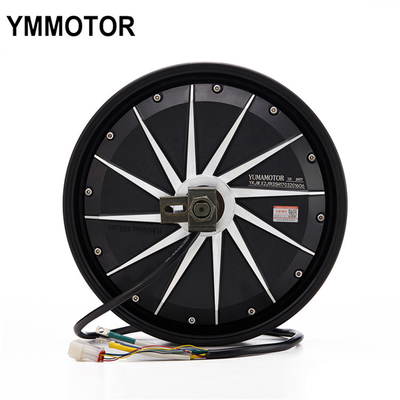

Waterproof E Scooter 12 Inch Hub Motor 48v 1500w Electric Brushless Hub Motor

10 Pieces
MOQ
Waterproof E Scooter 12 Inch Hub Motor 48v 1500w Electric Brushless Hub Motor
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: YM-HY-121500
Usage: Electric Bicycle, Electric Motorcycle
Type: Brushless DC Motor
Torque: 128-135N.m
Construction: Permanent Magnet
Commutation: Brushless
Protect Feature: Waterproof
Speed(RPM): 750
Continuous Current(A): 10A-83A
Efficiency: ≥90%, ≥90%
Certificación: CCC, ce
Motor Type: Brushless Direct Current Motor(BLDC Motor)
Axle Configuration: Double
Use: Electric Bicycle,Electric Motorcycle
OEM: Accepted
Gears: Gearless
Magnet Height: 30mm
Number Of Motor Phases: 3
Waterproof Grade: IP67
MOQ: 10 Piece/Pieces
Información básica
Certificación: CCC, ce
Model Number: YM-HY-121500
Pago y Envío Términos
Packaging Details: Standarding packing with carton boxes.
Supply Ability: 10000 Piece/Pieces per Week
Descripción de producto

E Scooter 12 Inch Hub Motor 48v 1500w Electric Brushless Hub Motor

Main Products

Yuma Motor Specification:

Motor Type

Brushless Direct Current Motor(BLDC Motor)

Axle Configuration

Double

Wheel Rim

12 inch

Rated Speed

59-63km/h

Voltage

72V

Magnet Height

30mm

RPM

750

Brake System

Drum Brake/Disc Brake

Hall Sensors

1/2

Hall Sensor Phasing

120°

Number of motor phases

3

Max Efficiency

≥90%

Rated Out Power

1500w

Number of Pole Pairs

28

Cross Section of Phase Wire

6 square

Waterproof Grade

IP67

Color

Black/white etc.

Package

Carton

Notice:

Yuma Motor could work 120 ℃ in half an hour without damage.

Suggestion (Setting of Controller)

When it's 130 ℃ inside of motor (in 30s), the current should be limited 50%.

When it's 150 ℃, the controller shut down. When it drop down to 110℃, the controller work again.

More Yuma Motor Informaiton:

Optional Appearance

Motor Details, drawing, performance curve (refer to attachment in PDF).

For more information, please feel free to contact with us.
